AFM - Atomkraftmikroskopie

Analytical Services, Atomic Force Microscope

Analytical Services, Tip of AFM,

Analytical Services, Analytical - AFM

Atomic Force Microscope

Tip of AFM

Analytical - AFM

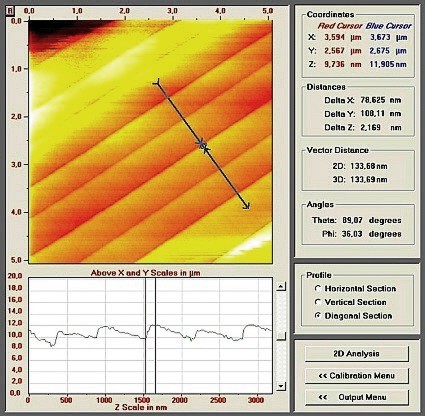

AFM of stepped surface of an Al2O3 wafer after O2 annealing

Analytical Services, AFM of stepped surface of an Al2O3 wafer after O2 annealing

AFM of different SrTiO3 substrates after Ti - termination



AFM of an Al2O3 wafer with GaN layer and a deep defect

Analytical Services, AFM of an Al2O3 wafer with GaN layer and a deep defect

AFM of a GaN single crystal
grown out of a GaN layer

AFM of a GaN crystal grown
through a GaN layer

AFM ofa GaN layer with growth defects resulting out of scratches in the Al2O3 substrate

AFM of a GaN layer with a large defect resulting out of resin remains on the substrate

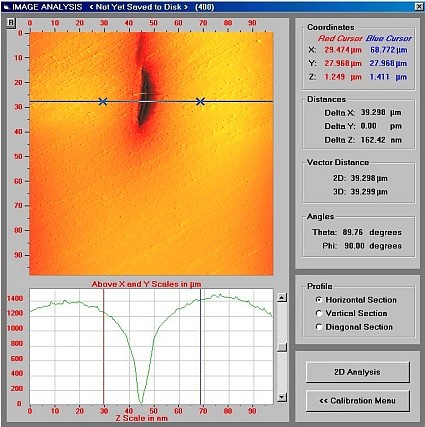

AFM of a scratch made by
handcleaning on a Al2O3 substrate

AFM of BaTiO3 substrate with lamellas out of phase transition Stress
